Truck wheel balancing made easy: Wheel balancing machine for buses and trucks with height-adjustable flange

Height-adjustable flange:

• Easy clamping with the wheel on the ground instead of mid-air
• No separate wheel lift required
• Slide with only 59mm build height enables easier lateral movement

Measurement and balancing:

• Balancing of truck wheels in 8 seconds
• Wheel stopping in exact position via electromagnetic brake
• LED for enhanced visibility when placing weights
• Inner line laser for precise weight positioning
• Split program for dividing and hidden attachment of weights behind the spokes

Detection of wheel data:

• Automatic measuring arm for distance and diameter measurement and weight placement
• Extended measuring arm up to 32" rim diameter
• Automatic selection of clip-on or adhesive weight program
• Highest measurement accuracy +/- 0.5g

Wheel guard with integrated sonar:

• Automatic detection of wheel width for steel and aluminum wheels
• No manual input required with measuring gauge
• Balancing program starts automatically upon closing the wheel guard

19" touchscreen monitor:

• Graphical representation of all processes
• Simplifies correct balancing with guided workflows
• Operable even with gloves

Quick clamping:

• Mechanical clamping with quick clamping nut
• Stable 40mm shaft
• Handles wheel weights up to 200kg

Included in the delivery:

• Quick lock ring
• Clamping cap
• Pressure ring
• 4-arm and 5-arm centering kit 1692502026
• 300g counterweight
• Weight pliers
• Measuring gauge

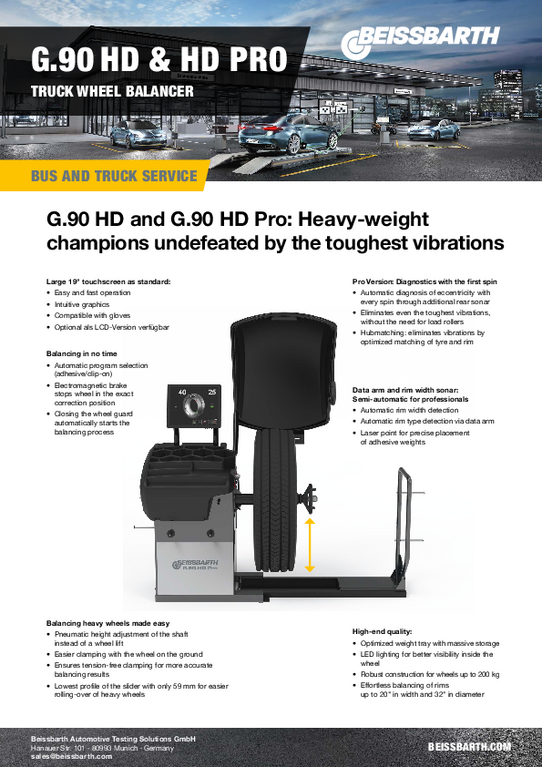

TSE G.90 HD & G.90 HDPro brochure     Download
